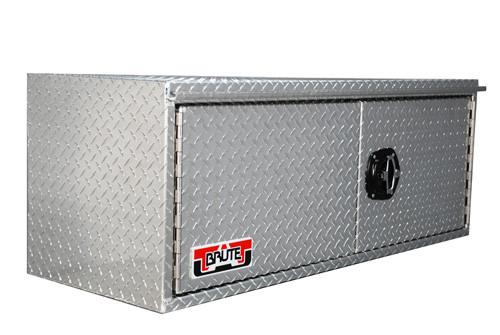

  • Brute Heavy Duty Underbody Swing Barn Door Tool Box showing Models 36, 48 and 60 , which feature split doors that open left & right
  • Brute Heavy Duty Underbody Swing Barn Door Tool Box showing Models 18, 24 and 30, which feature one door that swings open to the left
  • Our customer, Louis, got creative with our Brute Heavy Duty Underbody Swing Barn Door Tool Box and mounted it on his trailer tongue.  Yes, we had several conversations and measurements to be sure the doors would clear his electric trailer jack.
  • Brute Heavy Duty Underbody Swing Barn Door Tool Boxes are available in optional TEXTURED black powder coat finish
  • Brute Heavy Duty Underbody Swing Barn Door Tool Boxes  showing the interior of Models 18, 24 and 30
  • Brute Heavy Duty Underbody Swing Barn Door Tool Boxes  showing the interior of Models 36, 48 and 60, with  split doors opening left & right
  • Brute Heavy Duty Underbody Swing Barn Door Tool Boxes  feature compression handles
  • Brute Heavy Duty Underbody Swing Barn Door Tool Boxes feature roller cam latches
  • Compression latch 3-point system on models 36, 48 & 60 of the Brute Heavy Duty Underbody Swing Barn Door Tool Boxes
  • Brute Heavy Duty Underbody Swing Barn Door Tool Boxes  feature overhead rain gutters
  • Brute Heavy Duty Underbody Swing Barn Door Tool Boxes  feature reinforced bottom corners

Brute Heavy Duty Underbody Swing Barn Door Tool Boxes

$504.26
Qty

    Our Brute Heavy Duty Underbody Swing Barn Door Tool Boxes mount underneath a flat bed or stake bed truck and come in two models with many widths available to fit your specific work needs.

    BRUTE HEAVY DUTY UNDERBODY SWING BARN DOOR TOOL BOXES FEATURES:

    • Hand made in the USA with pride by skilled craftspeople
    • Commercial grade due to the heavy duty construction
    • Full wrap, one piece body design
    • .100 thick diamond tread aluminum construction
    • .125 thick smooth aluminum bottom corner reinforcements
    • Commercial grade folding T-Handles are “compression style” to seat the door into the automotive grade trim lock seal, preventing leaks
    • STRATTEC high quality key cylinder
    • Roller cam latch for smooth operation
    • When locked, the door handle spins freely so a potential thief can’t break it
    • Full heavy duty aluminum lock cover on door
    • Welded gussets in each corner of door frame keeps door rigid
    • Flush mount, side swing door(s)
    • Doors are attached with a bolted stainless steel continuous hinge, including a ¼” stainless pin for strength/support
    • Overhead rain gutter over the entire length of the top to divert water
    • All important hardware inside the box is guarded with aluminum shields to protect them from damage (takes up to 3" of interior space behind the compression handle)
    • 36" and longer boxes utilize a 3 point latching system
    • Optional mounting brackets available in either 18" or 24"

    AVAILABLE IN:

    • Brite Aluminum
    • Black Textured Powder Coated Aluminum:
      • $85 per box additional
      • Allow two extra weeks for delivery since it has to be sent to the powder coater and returned for shipping

    FITMENT NOTES:

    • These boxes are made to the dimensions shown in our cartoon drawings – the dimensions will display for each size box when you click on the model in our drop down menu
    • MEASURE YOUR TRUCK BEFORE ORDERING to be sure the size box you order will fit your model

    TWO MODELS AVAILABLE:

    • 18” X 18” MODELS:
      • 18”D x 18”T x 18”W - door swings left; weighs 25 lbs; 4.40 cu. ft. storage
      • 18”D x 18”T x 24”W - door swings left; weighs 33 lbs; 5.72 cu. ft. storage
      • 18”D x 18”T x 30”W - door swings left; weighs 39 lbs; 7.04 cu. ft. storage
      • 18”D x 18”T x 36”W - split door swings left & right; weighs 45 lbs; 8.36 cu. ft. storage
      • 18”D x 18”T x 48”W - split door swings left & right; weighs 58 lbs; 11 cu. ft. storage
      • 18”D x 18”T x 60”W - split door swings left & right; weighs 71 lbs; 13.63 cu. ft. storage
      • Order our optional 18” mounting brackets if you will NOT be welding or bolting these boxes to your truck bed
    • 24” X 24” MODELS:
      • 24”D x 24”T x 30”W - door swings left; weighs 61 lbs; 12.04 cu. ft storage
      • 24”D x 24”T x 36”W - split door swings left & right; weighs 66 lbs; 14.29 cu. ft. storage
      • 24”D x 24”T x 48”W - split door swings left & right; weighs 70 lbs; 18.81 cu. ft. storage
      • 24”D x 24”T x 60"W - split door swings left & right; weighs 81 lbs; 23.32 cu. ft. storage
      • Order our optional 24” mounting brackets if you will NOT be welding or bolting these boxes to your truck bed

    DO YOU ABSOLUTELY POSITIVELY PROMISE THIS TOOLBOX WILL FIT MY TRUCK?  NO, we absolutely positively promise that this Unique toolbox is carefully made to the specifications listed. There is only one way you can be 100% sure this fine toolbox will fit your truck the way you want it to. Write down the dimensions and go out to your truck and compare them to your measurements of your truck.

    WARRANTY INFORMATION:

    • Manufacturer lifetime factory warranty against all defects in structural materials and workmanship provided they are assembled, installed & used in accordance with all manufacturer’s specifications and instructions.
    • Powder-coated products cannot be warranted against rust. If you get scrapes or scratches, touch them up with a rust protective paint (such as Rustoleum).
    • All warranties have legal limitations. Please read the paperwork that accompanies your Unique Truck Accessories product.

    RETURN POLICY:

    • If the shipping carton arrives damaged, DO NOT ACCEPT IT. Refuse delivery and contact us immediately.
    • If you accept a damaged toolbox as “free and clear of all damage” on the waybill, neither Worktrucksusa.com or Unique Truck Accessories will be responsible for damage that has occurred during shipping
    • If defective OR you receive the wrong product:
      • Save the box and ALL PACKING MATERIAL
      • Contact us within 7 days
      • Do NOT return the product until we send you a return authorization form and a return shipping address
      • Ship to us in the original box with all packing, parts & instructions
      • If it is received in good, re-saleable condition when we get it back, we’ll promptly send you a refund
      • If the problem is NOT a manufacturing defect or a wrong shipment, there is a $100 re-stocking fee that will be deducted from your refund
      • If the problem is not a manufacturing defect, you will need to pay for the return shipping

    SHIPPING INFORMATION:

      • Shipping is included in our pricing anywhere in the Continental USA, and we also INCLUDE INSURANCE AT NO ADDITIONAL COST
      • Contact us for special shipping pricing on two or more units
      • Usually ships within 25-35 days of order receipt (these units are hand built to order)
      • Because of the insured value of your product, a signature is required for delivery
      • We must have a VALID telephone number so the freight company can contact you regarding product delivery

    SPECIAL NOTES:

    • If you choose not to be home to inspect the package when it is delivered, neither WorkTrucksUSA.com or Unique Truck Accessories will be responsible for damage that has occurred during shipping and the insurance will be void
    • If you decide to allow another party sign for the delivery, be sure to have them inspect the package for damage before accepting it
    • For shipments to Alaska, Hawaii or Canada please contact us with your zip or post code for a quote
    • We can only ship to other US territories if you have a shipping broker with a US address we can ship to

    FLEET PRICING: Email or call us and we will be happy to put together a quote for your business needs.

    CONTACT INFORMATION:

    • Email: customerservice@worktrucksusa.com
    • Telephone: 941-375-3806

    We are authorized dealers for everything we sell. We do not buy liquidations, odd lots or used parts. We are here to assist you with installation questions, sourcing specialty items and help with warranty issues after the sale. You can buy any item we sell with confidence in the quality of the product and our customer service, including our Brute Heavy Duty Underbody Swing Barn Door Tool Boxes.
