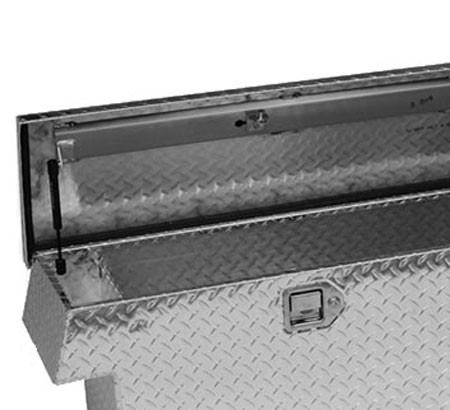

  • Narrow Low Profile Crossover Diamond Plate Toolbox showing locking paddle latch, gas strut, reinforced lid brace & end storage shelf
  • Low profile crossbox with storage shelf on each end
  • Narrow Low Profile Crossover Diamond Plate Toolbox has locking paddle latches
  • Size Cartoon for measuring your truck for our Narrow Low Profile Crossover Diamond Plate Toolbox

Narrow Low Profile Crossover Diamond Plate Toolboxes

$319.83
Qty

    Fitments for our Narrow Low Profile Crossover Diamond Plate Toolboxes are specific to the make, model and year of your truck.  Please measure your truck and compare the measurements to the specs listed below to be sure you order the correct model for your specific truck.  Call us at 941-375-3806 if you have any questions or do not see a fitment for your particular truck before placing your order. We will be happy to assist you in getting the correct model.

    NARROW LOW PROFILE CROSSOVER DIAMOND PLATE TOOLBOXES FEATURES:

    • Hand made in the USA with pride by skilled craftspeople
    • Model is narrow (12”W X 14”D), allowing you to use more of your truck bed
    • Low profile lid gives you improved vision to the rear of your cab and its sleek clean lines look sharp on your truck
    • The three inches we took from the height of the lid were added to the “basket” of the box, so you get the same storage capacity as our regular cross boxes – and at no additional cost
    • Heavy duty, thick diamond tread aluminum construction
    • High crown lid design looks great on your truck
    • Lid is internally braced around all four edges PLUS it has a rigid beam running the entire length of the lid
      • Eliminates twisting and warping
      • Maintains lid seal contact
    • Automotive grade gasket seal keeps out leaks, dust & debris
    • TWO automotive grade gas lid lifts allow you to easily open the lid & it stays open until you close it
    • End shelves at EACH end for small tools, parts & supplies so you stay organized and efficient
    • Stainless steel locking paddle latches with keys (keyed alike) allow for easy opening and access from either side of your truck
    • Universal “J-Hook” no-drill mounting system for quick, secure attachment to your truck (all mounting hardware and complete instructions included)
    • Superior welds all around, a sign of a quality toolbox

    TRUCK FITMENT GUIDE - Tell us your make, model, model year & bed length in the comment box at checkout and we can double check the fitment for you.

    • CHEVROLET/GMC:
      • Full Size Trucks 1972-Current, long or short beds = Model 600
      • S10/S15 1982-1993, long or short beds = Model 610
      • S10/S15 1994-2004, long or short beds = Model 630
      • Colorado/Canyon 2004-2012 long bed = Model 630
      • Stepside Full Size – all model years and long or short beds = Model 640
    • DODGE:
      • Dakota 1992-Current – long bed = Model 635
      • Ram 1500 2009-2011 WITH factory built-in boxes, long or short bed = Model 680
      • Ram 1994-Current Full Size WITHOUT factory built-in boxes, long or short beds = Model 670
    • FORD:
      • Full Size Trucks 1972-2005, long or short beds = Model 600
        • Does NOT fit 1999-Current Super Duty models (see our Model 699)
        • Does NOT fit Ford F-150’s 1972-2005 model years with a 5.5’ bed
      • Ranger - all model years EXCEPT SPLASH, long or short bed = Model 610
      • Ranger Flareside Splash –all model years, long or short bed = Model 650
      • Explorer Sport Track 2001-2011, long or short bed = Model 610
      • F-150 Flare Side 1978-1996, long or short bed = Model 640
      • F-150 Flare Side 1997-2003, long or short bed = Model 635
      • F-150 Flare Side 2004-Current, long or short bed = Model 660
      • F-150 1997-2004, long or short bed = Model 670
      • F-150 2005-Current, long or short bed = Model 680
      • Super Duty 1999-Current, long or short bed = Model 699
    • IMPORTS NOT SPECIFICALLY LISTED:
      • All model years, long beds = Model 610
    • LINCOLN MARK LT: 2005-Current, long or short bed = Model 680
    • MAZDA – 1999-2012, long bed = Model 610
    • NISSAN - With or without utili-trac
      • Frontier 1986-2004, long bed = Model 630
      • Frontier 2005-Current, long bed = Model 635
      • Titan 2004-Current, long or short bed = Model 680
    • TOYOTA:
      • Tacoma 1995-2004, long bed = Model 630
        • Does NOT fit Tacoma Stepside
      • T-100 - all model years, long or short bed = Model 660
      • Tundra – all model years, long or short bed = Model 660

     SPECIFICATIONS: Refer to size cartoons:

    • ALL models share these common dimensions:
      • Under-Rail Depth (C) = 11.5"
      • Overall Height (D) = 14.5"
      • Bottom Width (F) = 11.5"
      • Overall Width (E) = 12"
    • Overall Length (A) and Bottom Length (B) are model specific:
      • Model 600: Overall Length (A) = 71.5"; Bottom Length (B) = 62"
      • Model 610: Overall Length (A) = 60.5"; Bottom Length (B) = 51"
      • Model 630: Overall Length (A) = 63.0"; Bottom Length (B) = 53.1"
      • Model 635: Overall Length (A) = 64.5"; Bottom Length (B) = 55"
      • Model 640: Overall Length (A) = 56.5"; Bottom Length (B) = 47"
      • Model 650: Overall Length (A) = 51.5"; Bottom Length (B) = 42"
      • Model 660: Overall Length (A) = 67.5"; Bottom Length (B) = 58"
      • Model 670: Overall Length (A) = 72.5"; Bottom Length (B) = 63"
      • Model 680: Overall Length (A) = 69.5"; Bottom Length (B) = 60"
      • Model 699: Overall Length (A) = 73.5"; Bottom Length (B) = 64"

    DO YOU ABSOLUTELY POSITIVELY PROMISE THIS TOOLBOX WILL FIT MY TRUCK? NO, we absolutely positively promise that this K&W toolbox is carefully made to the specifications shown above. The manufacturer has looked at, measured and recommends these fitments for the specific makes, models and years we have listed. There is only ONE WAY you can be 100% sure this toolbox will fit your truck the way you want it to. Write down our dimensions, go out to your truck, MEASURE IT TWICE and compare them to determine if what you select will fit. Dimensions for each model will display on a size cartoon when you select the model recommended for your truck make, model and year in our drop-down menu.

    AVAILABLE IN TWO FINISHES:

    • Brite aluminum
    • Black powder coat
      • $75 per box additional cost
      • Requires an additional two weeks for delivery since it has to be sent to the powder coating facility and returned for shipping

    WARRANTY INFORMATION:

    • Manufacturer warrants every part of this toolbox to be free of defects in materials or workmanship for ninety days.
    • Powder-coated products cannot be warranted against rust. If you get scrapes or scratches, touch them up with a rust protective paint (such as Rustoleum).
    • All warranties have legal limitations. Please read the paperwork that accompanies your toolbox, or call us with questions.

     RETURN POLICY:

    • If the shipping carton arrives damaged, DO NOT ACCEPT IT. Refuse delivery and contact us immediately.
    • If you accept a damaged toolbox as “free and clear of all damage” on the waybill, neither Worktrucksusa.com or K&W Manufacturing will be responsible for damage that has occurred during shipping
    • If defective OR you receive the wrong product:
      • Save the box and ALL PACKING MATERIAL
      • Contact us within 7 days
      • Do NOT return the product until we send you a return authorization form and a return shipping address
      • Ship to us in the original box with all packing, parts & instructions
      • If it is received in good, re-saleable condition when we get it back, we’ll promptly send you a refund
      • If the problem is NOT a manufacturing defect or a wrong shipment, there is a $100 re-stocking fee that will be deducted from your refund
      • If the problem is not a manufacturing defect, you will need to pay for the return shipping

    SHIPPING INFORMATION:

    • Shipping is per box in the Continental USA, and we also INCLUDE INSURANCE AT NO ADDITIONAL COST
    • Contact us for special shipping pricing on two or more units
    • Because of the insured value of your product, a signature is required for delivery
    • We must have a VALID telephone number so the freight company can contact you regarding product delivery

     SPECIAL NOTES:

    • If you choose not to be home to inspect the package when it is delivered, neither WorkTrucksUSA.com or K&W Manufacturing will be responsible for damage that has occurred during shipping and the insurance will be void
    • If you decide to allow another party sign for the delivery, be sure to have them inspect the package for damage before accepting it
    • For shipments to Alaska, Hawaii or Canada please contact us with your zip or post code for a quote
    • We can only ship to other US territories if you have a shipping broker with a US address we can ship to

    FLEET PRICING: Email or call us and we will be happy to put together a quote for your business needs.

    CONTACT INFORMATION:

    • Email: customerservice@worktrucksusa.com
    • Telephone: 941-375-3806

    We are authorized dealers for everything we sell. We do not buy liquidations, odd lots or used parts. We are here to assist you with installation questions, sourcing specialty items and help with warranty issues after the sale. You can buy any item we sell with confidence in the quality of the product and our customer service, including our Narrow Crossover Low Profile Diamond Plate Toolboxes.
